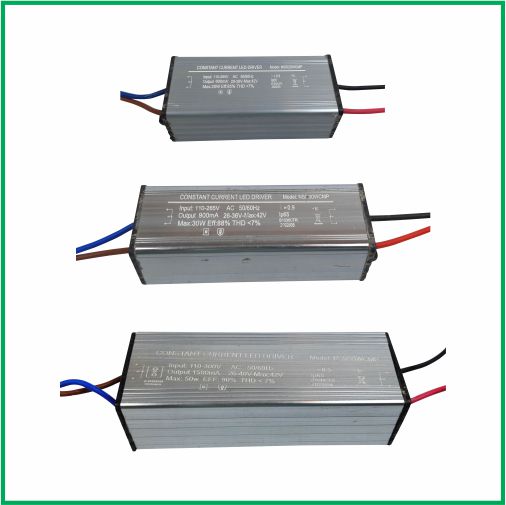

LED Street Light Driver | Street Light Driver | LED Outdoor Light Driver | Waterproof LED Street Light Driver
Being a reliable name in the lighting industry, we Bhagwati Lighting Industries offer a superior quality of led street light driver to our clients. We manufacture and supply led street light driver with low THD and high efficiency. The raw material is buy from trusted vendors. All the components are made up of high grade raw material. These led outdoor light drivers conform to the norms defined by the market.
The products are available at market leading prices to the customers. The remarkable features of led street light drivers are low energy consumption, high durability and negligible maintenance etc. In order to attain maximum client satisfaction, we check the product quality on several counts at several stages.
Our street light driver is used for making 20W led street light,30W led street light,50W led street light,100W led street light. Our led drivers are highly durable and have long service life.
- Features:
- Fold Back Technology
- Short Circuit and open circuit protection
- Quasi resonant mode ( QRM ) Operation mode
- High Accurate led current
- Technical Specification:
- Product Generic Name : LED Light Driver
- Model No : NSR 20CMP / NSR 30CMP / NSR 50CMP
- MOQ : 100 Pieces
- Country of Origin : Made In India
- Shape : Rectangle
- Driver Wattage : 20W - 100W
- Operating Input Voltage ( 20W-30W ) : 110V-265V
- Operating Input Voltage ( 50W ) : 110V-300V
- Max Input Voltage : 400V
- Power Factor : 0.98
- THD : <7%
- Surge Protection (20W / 30W ) : 4 KVA +_5%
- Surge Protection ( 50W ) : 6 KVA +_5%
- AC Frequency : 50Hz - 60Hz
- Output Voltage ( 20W ) : 24V-38V ( MAX-42V )
- Output Voltage ( 30W ) : 26V-36V ( MAX-42V )
- Output Voltage ( 50W ) : 26V-40V ( MAX-42V )
- Output Current : 600mA +_5% / 900mA +_5% / 1500mA +_5%
- Water Resistant : IP-65
- Power Efficiency ( 20W / 30W ) : 85%
- Power Efficiency ( 50W ) : 90%
- ( 20W ) Dimension ( L X W X H ) : 65.8 X 30 X 20.7 MM
- ( 30W ) Dimension ( L X W X H ) : 78.5 X 30 X 20 MM
- ( 50W ) Dimension ( L X W X H ) : 98.5 X 35.9 X 27 MM
- Driver Type : Non Isolated
- Phase : Single Phase
- Usage/Application : Lighting Industry
- Body Material : Aluminium
